wxIFMComponent Class Reference

Class representing a generic component in the interface. More...

#include <manager.h>

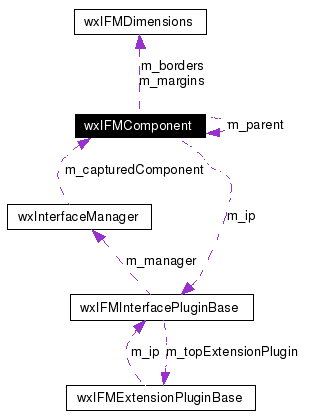

Collaboration diagram for wxIFMComponent:


Public Member Functions
	wxIFMComponent (wxIFMInterfacePluginBase *ip, int type)
	~wxIFMComponent ()
void	AddExtensionData (wxIFMExtensionDataBase *data)
wxIFMExtensionDataBase *	GetExtensionData (wxIFMComponentDataKeyType key)
wxIFMExtensionDataBase *	RemoveExtensionData (wxIFMComponentDataKeyType key)
void	Paint (wxDC &dc, const wxRegion &region)
int	GetType () const
wxWindow *	GetParentWindow ()
wxRect	GetRect ()
wxRect	GetBackgroundRect ()
wxRect	GetClientRect ()
wxRect	GetConvertedRect (wxRect rect, int coords_from, int coords_to)
wxSize	GetDesiredSize ()
void	SetDesiredSize (const wxSize &size)
wxSize	GetMinSize ()
wxSize	GetMaxSize ()
void	Show (bool s, bool update)
void	Hide ()
bool	IsShown ()
void	VisibilityChanged (bool vis)
bool	IsVisible ()
Static Public Member Functions
static int	GetNextVisibleComponent (const wxIFMComponentArray &components, int start)
static bool	IsChildOf (wxIFMComponent parent, wxIFMComponent child)
Public Attributes
wxRect	m_rect
	size and position of the component
wxSize	m_minSize
	minimum size of the component, stored in client coordinates
wxSize	m_maxSize
	maximum size of the component, stored in client coordinates
wxSize	m_desiredSize
	desired size of the component, stored in client coordinates
bool	m_fixed
	Specifies wether the component is allowed to be resized.
wxIFMBorders	m_borders
	widths of the top, left, right, bottom borders
wxIFMMargins	m_margins
	widths of the top, left, right, bottom margins
bool	m_hidden
	if the component is hidden
bool	m_visible
	if the component is shown, and all of its parents are shown
bool	m_canHide
	true if the component is allowed to be hidden
bool	m_docked
	true if the component is docked into another component
int	m_alignment
	specifies how the children of the component are aligned
wxIFMComponentArray	m_children
	the children of this component
wxIFMComponent *	m_parent
	the parent of this component
wxString	m_name
	the name of this component
int	m_childType
	if the component has a child, this specifies the type of child
wxWindow *	m_child
	if the component has a child, this is a pointer to the child window
Private Member Functions
wxInterfaceManager *	GetManager ()
	wxIFMComponent (const wxIFMComponent &)
Private Attributes
wxIFMComponentDataMap	m_data
int	m_type
	type of component
wxIFMInterfacePluginBase *	m_ip

Detailed Description

Class representing a generic component in the interface.

Definition at line 532 of file manager.h.

Constructor & Destructor Documentation

wxIFMComponent::wxIFMComponent ( wxIFMInterfacePluginBase * ip,

int type

)

Parameters:

manager The interface that this component belongs to

type The type of component. (Container, Panel, ...)

Definition at line 663 of file manager.cpp.
References wxIFMExtensionDataBase::GetDataKey(), IFM_ALIGN_NONE, IFM_NO_MAXIMUM_SIZE, IFM_NO_MINIMUM_SIZE, and m_data.

wxIFMComponent::wxIFMComponent ( const wxIFMComponent & ) [private]

Definition at line 685 of file manager.cpp.

wxIFMComponent::~wxIFMComponent ( )

Definition at line 688 of file manager.cpp.
References m_data.

Member Function Documentation

void wxIFMComponent::AddExtensionData ( wxIFMExtensionDataBase * data )

Called by plugins to add data storage to this component.

Note:
Unless manually removed by the plugin that added it, the data will be deleted by the component destructor.

Definition at line 705 of file manager.cpp.
References wxIFMExtensionDataBase::GetDataKey(), and m_data.
Referenced by wxIFMDefaultResizePlugin::OnCreateComponent(), wxIFMDefaultPanelPlugin::OnCreateComponent(), and wxIFMDefaultContainerPlugin::OnCreateComponent().

wxRect wxIFMComponent::GetBackgroundRect ( )

Returns:
Position and size of the background rectangle

See also:
coordsystems

Definition at line 837 of file manager.cpp.
References wxIFMRectEvent::GetRect(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultPanelPlugin::OnPaintBg(), wxIFMDefaultPanelPlugin::OnUpdate(), and wxIFMDefaultContainerPlugin::OnUpdate().

wxRect wxIFMComponent::GetClientRect ( )

Returns:
Position and size of the client rectangle

See also:
coordsystems

Definition at line 844 of file manager.cpp.
References wxIFMRectEvent::GetRect(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultPanelPlugin::DrawTabs(), wxIFMDefaultPanelPlugin::OnSelectTab(), wxIFMDefaultPanelPlugin::OnUpdate(), wxIFMDefaultResizePlugin::ResizeComponent(), and wxIFMCalcRectsEvent::wxIFMCalcRectsEvent().

wxRect wxIFMComponent::GetConvertedRect ( wxRect rect,

int coords_from,

int coords_to

)

Converts the given rect from the given coordinate system to the desired coordinate system using this component.
Returns:
Rect in the desired coordinate system

Definition at line 851 of file manager.cpp.
References wxIFMRectEvent::GetRect(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultPanelPlugin::OnDock(), wxIFMDefaultContainerPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnGetMinSize(), wxIFMDefaultPanelPlugin::OnGetMinSize(), and wxIFMDefaultPanelPlugin::OnSetDesiredSize().

wxSize wxIFMComponent::GetDesiredSize ( )

Returns:
The desired size of the component in absolute coordinates

Definition at line 858 of file manager.cpp.
References wxIFMRectEvent::GetSize(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMCalcRectsEvent::AddComponent(), wxIFMDefaultPanelPlugin::OnDock(), and wxIFMDefaultInterfacePlugin::OnUpdate().

wxIFMExtensionDataBase * wxIFMComponent::GetExtensionData ( wxIFMComponentDataKeyType key )

Retrieves the data stored by this component with the specified key.

Returns:
A pointer to the data with this key, or NULL no data with the given key exists.

Note:
The default component data can be accessed by passing IFM_DEFAULT_DATA_KEY to this function.
Trying to retrieve data that has not been set is an error.

Definition at line 710 of file manager.cpp.
References m_data.

wxInterfaceManager * wxIFMComponent::GetManager ( ) [private]

Definition at line 695 of file manager.cpp.
References wxIFMInterfacePluginBase::GetManager(), and m_ip.
Referenced by GetParentWindow().

wxSize wxIFMComponent::GetMaxSize ( )

Returns:
The maximimum tolerable size of the component in absolute coordinates

Definition at line 878 of file manager.cpp.
References wxIFMRectEvent::GetSize(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMCalcRectsEvent::AddComponent().

wxSize wxIFMComponent::GetMinSize ( )

Returns:
The minimum tolerable size of the component in absolute coordinates

Definition at line 871 of file manager.cpp.
References wxIFMRectEvent::GetSize(), m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMCalcRectsEvent::AddComponent(), wxIFMDefaultContainerPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnUpdate(), and wxIFMDefaultInterfacePlugin::OnUpdate().

int wxIFMComponent::GetNextVisibleComponent ( const wxIFMComponentArray & components,

int start

) [static]

Returns the index of the next visible component, or -1 if there are no more components or they are all hidden.
This is a helper function provided for plugins for easier OnUpdate handling of hidden components.

Parameters:

components Components array to search through

start Where to start searching

Note:
The value specified by start is included in the search

Returns:
Index of the next visible component, or -1 if there are no more (visible) components.

Warning:
This function may be removed in a future release

Definition at line 722 of file manager.cpp.
Referenced by wxIFMDefaultPlugin::OnCalcRects(), wxIFMDefaultContainerPlugin::OnUpdate(), and wxIFMDefaultResizePlugin::UpdateResizeSashes().

wxWindow * wxIFMComponent::GetParentWindow ( )

Returns:
Parent window of this component

Definition at line 820 of file manager.cpp.
References GetManager(), wxInterfaceManager::GetParent(), and IFM_GET_EXTENSION_DATA.
Referenced by wxIFMComponentButtonManager::AddButton(), wxIFMDefaultPlugin::OnConvertRect(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultDockingPlugin::OnShowDropTargets(), and wxIFMDefaultPlugin::OnUpdate().

wxRect wxIFMComponent::GetRect ( )

Returns:
Absolute rect and position

See also:
coordsystems

Definition at line 831 of file manager.cpp.
References m_rect.
Referenced by wxIFMDefaultResizePlugin::OnResizeEnd(), and wxIFMDefaultPanelPlugin::OnSelectTab().

int wxIFMComponent::GetType ( ) const

Returns:
The type of the component

Definition at line 700 of file manager.cpp.
References m_type.
Referenced by wxInterfaceManager::CaptureInput(), wxIFMDefaultContainerPlugin::GetVisibleChildrenCount(), wxIFMDefaultResizePlugin::HasResizeableChildren(), wxIFMDefaultContainerPlugin::HasVisibleChildren(), wxIFMDefaultPanelPlugin::OnComponentButtonClick(), wxIFMDefaultContainerPlugin::OnComponentButtonClick(), wxIFMDefaultContainerPlugin::OnDock(), wxIFMDefaultDockingPlugin::OnDrag(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultPanelPlugin::OnQueryChild(), wxIFMDefaultPanelPlugin::OnShowComponent(), wxIFMDefaultResizePlugin::OnUpdateResizeSashes(), wxIFMDefaultResizePlugin::ResizeComponent(), wxIFMDockEvent::SetDestination(), wxIFMUndockEvent::SetParent(), wxIFMDockEvent::wxIFMDockEvent(), and wxIFMUndockEvent::wxIFMUndockEvent().

void wxIFMComponent::Hide ( ) [inline]

Definition at line 712 of file manager.h.
References Show().
Referenced by wxIFMDefaultPanelPlugin::OnShowComponent().

bool wxIFMComponent::IsChildOf ( wxIFMComponent * parent,

wxIFMComponent * child

) [static]

Returns:
True if child is a child of parent

Warning:
This function may be removed in a future release

Definition at line 734 of file manager.cpp.
References m_children.
Referenced by wxIFMDefaultDockingPlugin::OnShowDropTargets().

bool wxIFMComponent::IsShown ( )

Returns:
Wether this component is visible

Definition at line 892 of file manager.cpp.
References m_hidden.
Referenced by wxIFMDefaultPlugin::OnShowComponent(), and wxIFMDefaultPlugin::OnVisibilityChanged().

bool wxIFMComponent::IsVisible ( )

Returns:
Wether or not the component is visible

Definition at line 907 of file manager.cpp.
References m_hidden, and m_visible.
Referenced by wxIFMDefaultContainerPlugin::GetVisibleChildrenCount(), wxIFMDefaultContainerPlugin::HasVisibleChildren(), wxIFMDefaultInterfacePlugin::OnPaint(), wxIFMDefaultPlugin::OnPaintBg(), wxIFMDefaultPlugin::OnPaintBorder(), wxIFMDefaultPanelPlugin::OnQueryChild(), wxIFMDefaultPanelPlugin::OnUpdate(), wxIFMDefaultInterfacePlugin::OnUpdate(), wxIFMDefaultPlugin::OnVisibilityChanged(), and Paint().

void wxIFMComponent::Paint ( wxDC & dc,

const wxRegion & region

)

Paints this component by sending PAINT_BACKGROUND, PAINTBORDER, and PAINT_DECOR events

Parameters:

dc DC to paint on

region Region that needs painting

Definition at line 778 of file manager.cpp.
References IsVisible(), m_children, m_ip, m_rect, Paint(), and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultInterfacePlugin::OnPaint(), and Paint().

wxIFMExtensionDataBase * wxIFMComponent::RemoveExtensionData ( wxIFMComponentDataKeyType key )

Removes data with the specified key from this component, but does not delete it.

Returns:
A pointer to the data removed, or NULL if no data with the given key exists.

Note:
Attempting to remove data that has not been set is an error.
Trying to remove default component data is illegal and also considered an error.

Definition at line 715 of file manager.cpp.
References m_data.

void wxIFMComponent::SetDesiredSize ( const wxSize & size )

Sets the desired size of this component. The size is specified in absolute coordinates
Definition at line 865 of file manager.cpp.
References m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultPanelPlugin::OnDock().

void wxIFMComponent::Show ( bool s,

bool update

)

Shows or hides this component
Parameters:

update Update the interface immediately

Definition at line 885 of file manager.cpp.
References m_hidden, m_ip, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by Hide(), wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPanelPlugin::OnComponentButtonClick(), wxIFMDefaultContainerPlugin::OnComponentButtonClick(), wxIFMDefaultPlugin::OnShowChild(), and wxIFMDefaultPlugin::OnShowComponent().

void wxIFMComponent::VisibilityChanged ( bool vis )

Called when the visibility of this component has changed. This happens if the component is visible and its parent was hidden or shown.

Parameters:

vis True if the component is now visible, false if it is not visible.

Definition at line 897 of file manager.cpp.
References m_ip, m_visible, and wxIFMInterfacePluginBase::ProcessPluginEvent().
Referenced by wxIFMDefaultPlugin::OnShowComponent(), and wxIFMDefaultPlugin::OnVisibilityChanged().

Member Data Documentation

int wxIFMComponent::m_alignment

specifies how the children of the component are aligned

Definition at line 572 of file manager.h.
Referenced by wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPlugin::OnCalcRects(), wxIFMDefaultDockingPlugin::OnDock(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultContainerPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnGetMaxSize(), wxIFMDefaultPlugin::OnGetMinSize(), wxIFMDefaultContainerPlugin::OnSetDesiredSize(), wxIFMDefaultResizePlugin::ResizeComponent(), wxIFMDefaultResizePlugin::UpdateContainerResizeSashes(), and wxIFMDefaultResizePlugin::UpdateResizeSashes().

wxIFMBorders wxIFMComponent::m_borders

widths of the top, left, right, bottom borders

Definition at line 564 of file manager.h.
Referenced by wxIFMDefaultPlugin::OnConvertRect(), wxIFMDefaultPanelPlugin::OnCreateComponent(), wxIFMDefaultContainerPlugin::OnCreateComponent(), and wxIFMDefaultPlugin::OnPaintBorder().

bool wxIFMComponent::m_canHide

true if the component is allowed to be hidden

Definition at line 569 of file manager.h.
Referenced by wxIFMDefaultContainerPlugin::HasNonCloseableChildren(), and wxIFMDefaultInterfacePlugin::OnAddChild().

wxWindow* wxIFMComponent::m_child

if the component has a child, this is a pointer to the child window

Definition at line 579 of file manager.h.
Referenced by wxIFMDefaultPlugin::OnGetMinSize(), wxIFMDefaultPanelPlugin::OnQueryChild(), wxIFMDefaultPanelPlugin::OnSetChild(), wxIFMDefaultPanelPlugin::OnUpdate(), and wxIFMDefaultPanelPlugin::OnVisibilityChanged().

wxIFMComponentArray wxIFMComponent::m_children

the children of this component

Definition at line 573 of file manager.h.
Referenced by wxIFMInterfacePluginBase::GetComponentByPos(), wxIFMDefaultInterfacePlugin::GetComponentByPos(), wxIFMDefaultContainerPlugin::GetVisibleChildrenCount(), wxIFMDefaultContainerPlugin::HasNonCloseableChildren(), wxIFMDefaultResizePlugin::HasResizeableChildren(), wxIFMDefaultContainerPlugin::HasVisibleChildren(), IsChildOf(), wxIFMDefaultPlugin::OnDeleteComponent(), wxIFMDefaultDockingPlugin::OnDock(), wxIFMDefaultPlugin::OnDock(), wxIFMDefaultPanelPlugin::OnDock(), wxIFMDefaultDockingPlugin::OnDragBegin(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultContainerPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnGetMaxSize(), wxIFMDefaultPlugin::OnGetMinSize(), wxIFMDefaultPanelPlugin::OnGetMinSize(), wxIFMDefaultContainerPlugin::OnSetDesiredSize(), wxIFMDefaultDockingPlugin::OnShowDropTargets(), wxIFMDefaultResizePlugin::OnUndock(), wxIFMDefaultPlugin::OnUndock(), wxIFMDefaultContainerPlugin::OnUndock(), wxIFMDefaultContainerPlugin::OnUpdate(), wxIFMDefaultPlugin::OnVisibilityChanged(), Paint(), wxIFMDefaultResizePlugin::ResizeComponent(), and wxIFMDefaultResizePlugin::UpdateResizeSashes().

int wxIFMComponent::m_childType

if the component has a child, this specifies the type of child

Definition at line 578 of file manager.h.
Referenced by wxIFMDefaultPanelPlugin::OnSetChild().

wxIFMComponentDataMap wxIFMComponent::m_data [private]

Definition at line 536 of file manager.h.
Referenced by AddExtensionData(), GetExtensionData(), RemoveExtensionData(), wxIFMComponent(), and ~wxIFMComponent().

wxSize wxIFMComponent::m_desiredSize

desired size of the component, stored in client coordinates

Definition at line 546 of file manager.h.
Referenced by wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnSetChildSize(), and wxIFMDefaultPlugin::OnSetDesiredSize().

bool wxIFMComponent::m_docked

true if the component is docked into another component

Definition at line 570 of file manager.h.
Referenced by wxIFMDefaultPlugin::OnDeleteComponent(), wxIFMDefaultPlugin::OnDock(), wxIFMDefaultDockingPlugin::OnDragBegin(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultResizePlugin::OnResizeEnd(), wxIFMDefaultDockingPlugin::OnShowDropTargets(), wxIFMDefaultPlugin::OnUndock(), wxIFMDefaultContainerPlugin::OnUndock(), wxIFMDefaultPlugin::OnUpdate(), wxIFMDefaultContainerPlugin::OnUpdate(), wxIFMDefaultResizePlugin::UpdateContainerResizeSashes(), and wxIFMDefaultResizePlugin::UpdateResizeSashes().

bool wxIFMComponent::m_fixed

Specifies wether the component is allowed to be resized.
Settings this to true implies that m_minSize = m_maxSize = m_desiredSize, and that the component will never be allowed to have a different size value.
Note that the min, max, and desired sizes do not need to be equal so long as this value is true. The min and max sizes will be ignored, and the desired size will be used for the components size.

Warning:
This value is not respected entirely as the above description states that it should be.

Todo:
Update code to reflect the above description

Definition at line 549 of file manager.h.
Referenced by wxIFMDefaultResizePlugin::HasResizeableChildren(), and wxIFMDefaultInterfacePlugin::OnAddChild().

bool wxIFMComponent::m_hidden

if the component is hidden

Definition at line 567 of file manager.h.
Referenced by wxIFMInterfacePluginBase::GetComponentByPos(), wxIFMDefaultInterfacePlugin::GetComponentByPos(), IsShown(), IsVisible(), wxIFMDefaultResizePlugin::OnConvertRect(), wxIFMDefaultContainerPlugin::OnGetDesiredSize(), wxIFMDefaultResizePlugin::OnGetRect(), wxIFMDefaultPlugin::OnHitTest(), wxIFMDefaultPanelPlugin::OnPaintBg(), wxIFMDefaultResizePlugin::OnPaintDecor(), wxIFMDefaultPanelPlugin::OnPaintDecor(), wxIFMDefaultPanelPlugin::OnSetChild(), wxIFMDefaultContainerPlugin::OnUpdate(), and Show().

wxIFMInterfacePluginBase* wxIFMComponent::m_ip [private]

Definition at line 538 of file manager.h.
Referenced by GetBackgroundRect(), GetClientRect(), GetConvertedRect(), GetDesiredSize(), GetManager(), GetMaxSize(), GetMinSize(), Paint(), SetDesiredSize(), Show(), and VisibilityChanged().

wxIFMMargins wxIFMComponent::m_margins

widths of the top, left, right, bottom margins

Definition at line 565 of file manager.h.
Referenced by wxIFMDefaultPlugin::OnConvertRect(), wxIFMDefaultPanelPlugin::OnCreateComponent(), and wxIFMDefaultContainerPlugin::OnCreateComponent().

wxSize wxIFMComponent::m_maxSize

maximum size of the component, stored in client coordinates

Definition at line 545 of file manager.h.
Referenced by wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPlugin::OnGetMaxSize(), and wxIFMDefaultPlugin::OnSetChildSize().

wxSize wxIFMComponent::m_minSize

minimum size of the component, stored in client coordinates

Definition at line 544 of file manager.h.
Referenced by wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPlugin::OnGetDesiredSize(), wxIFMDefaultPlugin::OnGetMinSize(), wxIFMDefaultPanelPlugin::OnGetMinSize(), and wxIFMDefaultPlugin::OnSetChildSize().

wxString wxIFMComponent::m_name

the name of this component

Definition at line 576 of file manager.h.
Referenced by wxIFMDefaultPanelPlugin::DrawTabs(), wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPanelPlugin::OnDock(), and wxIFMDefaultPanelPlugin::OnPaintDecor().

wxIFMComponent* wxIFMComponent::m_parent

the parent of this component

Definition at line 574 of file manager.h.
Referenced by wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultPlugin::OnDock(), wxIFMDefaultPanelPlugin::OnDock(), wxIFMDefaultDockingPlugin::OnDrag(), wxIFMDefaultDockingPlugin::OnDragEnd(), wxIFMDefaultPanelPlugin::OnQueryChild(), wxIFMDefaultResizePlugin::OnResizeEnd(), wxIFMDefaultResizePlugin::OnShowChild(), wxIFMDefaultPlugin::OnShowComponent(), wxIFMDefaultPanelPlugin::OnShowComponent(), wxIFMDefaultDockingPlugin::OnShowDropTargets(), wxIFMDefaultPlugin::OnUndock(), wxIFMDefaultContainerPlugin::OnUndock(), wxIFMDefaultResizePlugin::ResizeComponent(), wxIFMDefaultResizePlugin::UpdateResizeSashes(), and wxIFMUndockEvent::wxIFMUndockEvent().

wxRect wxIFMComponent::m_rect

size and position of the component

Definition at line 543 of file manager.h.
Referenced by wxIFMInterfacePluginBase::GetComponentByPos(), wxIFMDefaultInterfacePlugin::GetComponentByPos(), GetRect(), wxIFMDefaultInterfacePlugin::OnAddChild(), wxIFMDefaultDockingPlugin::OnDragBegin(), wxIFMDefaultPlugin::OnGetRect(), wxIFMDefaultPlugin::OnHitTest(), wxIFMDefaultInterfacePlugin::OnPaint(), wxIFMDefaultResizePlugin::OnResizeEnd(), wxIFMDefaultPlugin::OnSetRect(), wxIFMDefaultPlugin::OnUpdate(), and Paint().

int wxIFMComponent::m_type [private]

type of component

Definition at line 537 of file manager.h.
Referenced by GetType().

bool wxIFMComponent::m_visible

if the component is shown, and all of its parents are shown

Definition at line 568 of file manager.h.
Referenced by IsVisible(), and VisibilityChanged().

The documentation for this class was generated from the following files:

/home/jacopo/matocad-0.1/include/wxIFM/manager.h
/home/jacopo/matocad-0.1/src/wxIFM/manager.cpp

wxIFMComponent Class Reference

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
