wxIFMComponentButtonManager Class Reference

Class for managing small buttons that appear for a component. More...

#include <definterface.h>

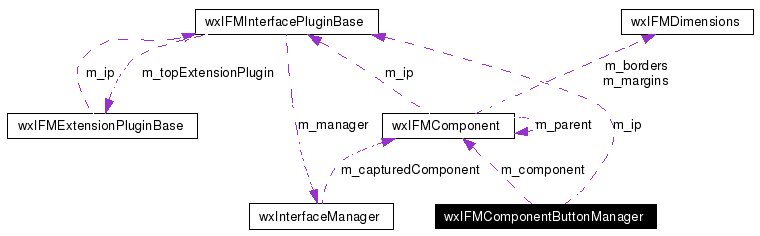

Collaboration diagram for wxIFMComponentButtonManager:

[legend]List of all members.

Public Member Functions
	wxIFMComponentButtonManager (wxIFMInterfacePluginBase *ip, wxIFMComponent *component)
	~wxIFMComponentButtonManager ()
wxIFMInterfacePluginBase *	GetIP ()
wxIFMComponent *	GetComponent ()
wxIFMComponentButton *	AddButton (int id)
	Adds a button to this button manager.
void	RemoveButton (int id)
	Removes (and deletes) button from this manager.
wxIFMComponentButton *	GetButton (int id)
const wxRect	GetRect () const
const wxPoint &	GetPosition () const
void	SetPosition (const wxPoint &pos)
void	SetHeight (int height)
void	Show (bool show=true)
void	Hide ()
void	Show (bool show, int id)
void	SetParent (wxWindow *parent)
void	Layout ()
Public Attributes
wxIFMComponentButtonArray	m_buttons
Private Attributes
wxPoint	m_pos
int	m_height
wxIFMInterfacePluginBase *	m_ip
wxIFMComponent *	m_component
bool	m_hidden

---

Detailed Description

Class for managing small buttons that appear for a component.

Warning:

The api for this class will change in an incompatible way before the next release

Todo:

Make this class be able to position buttons horizontally or vertically

Definition at line 321 of file definterface.h.

---

Constructor & Destructor Documentation

wxIFMComponentButtonManager::wxIFMComponentButtonManager (  wxIFMInterfacePluginBase *  ip, wxIFMComponent *  component )

Definition at line 2619 of file definterface.cpp.

wxIFMComponentButtonManager::~wxIFMComponentButtonManager (   )

Definition at line 2626 of file definterface.cpp.

---

Member Function Documentation

wxIFMComponentButton * wxIFMComponentButtonManager::AddButton (  int  id  )

Adds a button to this button manager. Parameters: id  ID of the button to add Returns: Pointer to the button created Definition at line 2651 of file definterface.cpp. References wxIFMComponent::GetParentWindow(), IFM_COMPONENT_BUTTON_X, IFM_COMPONENT_BUTTON_Y, m_buttons, and m_component. Referenced by wxIFMDefaultPanelPlugin::OnCreateComponent().

wxIFMComponentButton * wxIFMComponentButtonManager::GetButton (  int  id  )

Returns the button with the requested id Definition at line 2684 of file definterface.cpp. References m_buttons. Referenced by Show().

wxIFMComponent * wxIFMComponentButtonManager::GetComponent (   )

Definition at line 2636 of file definterface.cpp. References m_component. Referenced by wxIFMComponentButton::OnLeftUp().

wxIFMInterfacePluginBase * wxIFMComponentButtonManager::GetIP (   )

Definition at line 2631 of file definterface.cpp. References m_ip. Referenced by wxIFMComponentButton::GetIP().

const wxPoint & wxIFMComponentButtonManager::GetPosition (   )  const

Returns: Position of this button manager Definition at line 2641 of file definterface.cpp. References m_pos.

const wxRect wxIFMComponentButtonManager::GetRect (   )  const

Returns: The rect that this button manager occupies Definition at line 2698 of file definterface.cpp. References IFM_COMPONENT_BUTTON_PAD, m_buttons, m_height, and m_pos. Referenced by wxIFMDefaultPanelPlugin::OnUpdate().

void wxIFMComponentButtonManager::Hide (   )

Definition at line 2646 of file definterface.cpp. References Show(). Referenced by wxIFMDefaultPanelPlugin::OnDestroyComponent().

void wxIFMComponentButtonManager::Layout (   )

Used to position the component buttons Definition at line 2738 of file definterface.cpp. References IFM_COMPONENT_BUTTON_PAD, IFM_COMPONENT_BUTTON_X, m_buttons, m_hidden, and m_pos. Referenced by wxIFMDefaultPanelPlugin::OnUpdate().

void wxIFMComponentButtonManager::RemoveButton (  int  id  )

Removes (and deletes) button from this manager. Parameters: id  ID of the button to remove Definition at line 2664 of file definterface.cpp. References m_buttons.

void wxIFMComponentButtonManager::SetHeight (  int  height  )

Sets the height (and indirectly the size of all buttons) of this button manager Note: The default height if IFM_CAPTION_HEIGHT Definition at line 2721 of file definterface.cpp. References IFM_COMPONENT_BUTTON_X, IFM_COMPONENT_BUTTON_Y, m_buttons, and m_height.

void wxIFMComponentButtonManager::SetParent (  wxWindow *  parent  )

Used to change the parent window of the buttons. Called during FLOATNOTIFY processing Definition at line 2730 of file definterface.cpp. References m_buttons.

void wxIFMComponentButtonManager::SetPosition (  const wxPoint &  pos  )

Sets the position of this button manager Definition at line 2716 of file definterface.cpp. References m_pos. Referenced by wxIFMDefaultPanelPlugin::OnCreateComponent(), and wxIFMDefaultPanelPlugin::OnUpdate().

void wxIFMComponentButtonManager::Show (  bool  show, int  id )

Shows or hides only the component with the given i Parameters: id  Button to show or hide Definition at line 2765 of file definterface.cpp. References GetButton().

void wxIFMComponentButtonManager::Show (  bool  show = true  )

Used to show or hide the component buttons Definition at line 2755 of file definterface.cpp. References m_buttons, and m_hidden. Referenced by Hide(), and wxIFMDefaultPanelPlugin::OnVisibilityChanged().

---

Member Data Documentation

wxIFMComponentButtonArray wxIFMComponentButtonManager::m_buttons

Definition at line 332 of file definterface.h. Referenced by AddButton(), GetButton(), GetRect(), Layout(), RemoveButton(), SetHeight(), SetParent(), and Show().

wxIFMComponent* wxIFMComponentButtonManager::m_component [private]

Definition at line 327 of file definterface.h. Referenced by AddButton(), and GetComponent().

int wxIFMComponentButtonManager::m_height [private]

Definition at line 325 of file definterface.h. Referenced by GetRect(), and SetHeight().

bool wxIFMComponentButtonManager::m_hidden [private]

Definition at line 328 of file definterface.h. Referenced by Layout(), and Show().

wxIFMInterfacePluginBase* wxIFMComponentButtonManager::m_ip [private]

Definition at line 326 of file definterface.h. Referenced by GetIP().

wxPoint wxIFMComponentButtonManager::m_pos [private]

Definition at line 324 of file definterface.h. Referenced by GetPosition(), GetRect(), Layout(), and SetPosition().

---

The documentation for this class was generated from the following files:

• /home/jacopo/matocad-0.1/include/wxIFM/definterface.h
• /home/jacopo/matocad-0.1/src/wxIFM/definterface.cpp
